How to fit a Helicoil | Step-by-step guide

If you tighten a bolt too far or too often, it will pull part of the thread out from what you are tightening it into. The thread comes out within the thread of the bolt, and you’re left with no way of tightening the bolt. A Helicoil insert is a way of replacing that thread – and it’s really quite easy.

Our centrestand bolt has threaded the frame – here’s how we fixed it.

What you need:

  • Drill
  • Helicoil kit
  • Thread gauge
  • Correct-sized tap
  • Oil
  • Hammer
Kit needed to fit a Helicoil

Step One: Identify the thread

Measuring the diameter showed that the bolt is an M10

First, you need to identify the thread. Metric threads are measured by diameter of thread, i.e., M8, but there are some with fine and course thread pitch, for example M8 x 1.00, or M8 x 1.25. Get the right one by using a simple thread pitch guide. British bikes use any manner of imperial sizes, so use imperial guides to get the correct Helicoil, or you could, at a pinch, fit the nearest metric size if that’s all you’ve got.

Article continues below...

Enjoy more Classic Bike Guide reading in the monthly magazine.
Click here to subscribe & save.

Step Two: Drill

The hole that’s stripped needs to be over-bored with a drill to then be able to take the new insert. It is essential to get the drill straight, so take your time. Ours were going into the frame to take the centrestand bolts, so were not too deep.


Step Three: Tapping

With the holes drilled out slightly oversized, it now needs to be tapped. Remember, you are looking at tapping the size to take the Helicoil, which will be larger than the bolt you want to fit eventually – I have panicked myself that way before!

The tap should come in your Helicoil kit. Take your time to get it straight and once you feel a grip, cut around a fifth of a turn, then turn back. This helps to clean the cutting head of swarf. I also use a cutting oil to make life easier. Once cut through to the depth you want for the insert, use a bottle or toothbrush and brake cleaner to clean the thread up.

Article continues below...
Careful where the Swarf goes – and clean the hole
Tapping the hole to take the insert

Step Four: Pop the insert on the twisting tool – pay attention to the tang!

Next, pop the insert onto the Helicoil twisting tool. Make sure the tang sits in the tool’s slot, so when you screw in the insert, the tang is at the bottom.

Pop the insert onto the Helicoil twisting tool
Pop it in tang first

Step Five: Screw

Screwing the Helicoil

Screw carefully so as not to break the tang.

Ours went in smoothly, but you can use a threadlock, like Loctite 262 if you are concerned, or if the insert is somewhere that will get hot.

Article continues below...
And it’s in…

Step 6: Break the tang off

Once home, remove the slotted tool and get a drift and hammer to break the tang off.

Give it a bang.

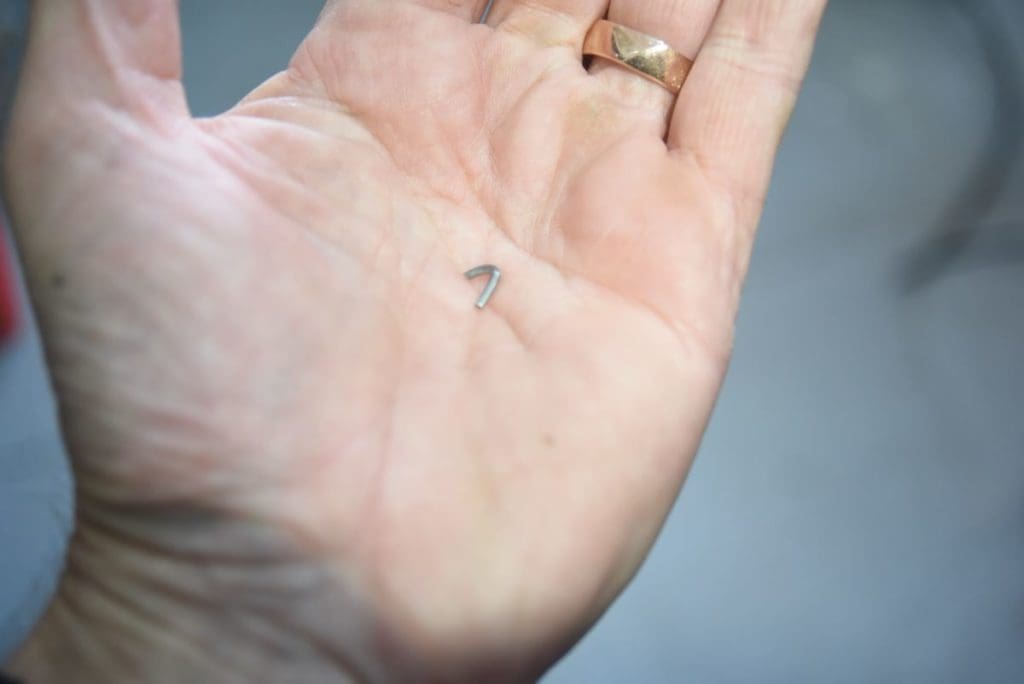

Removed tang
Get the tang out



If unsure of what you need, check out these specialists, especially for one-offs, tricky areas, or imperial sizes:
